Product application:
THW cable, suitable for cabling system in residential, commercial and industrial environments, for permanent installation of service and branch circuit wiring. 14AWG-8AWG can be installed through pipes and other gutters, the installation temperature must not exceed 60°C/75°C.
Standard and certification: ASTM B3, B8 UL83-Thermoset Insulated Cable, UL1581-Cable, Flexible Cable

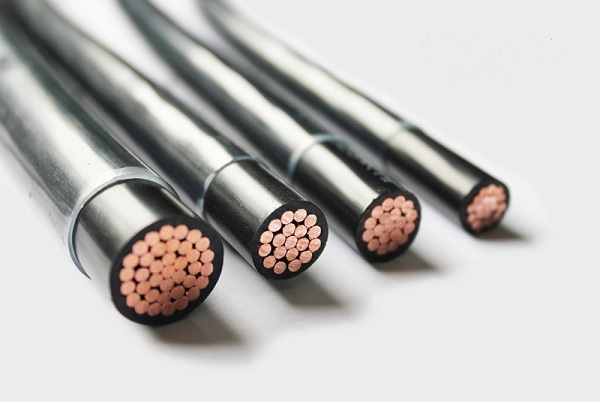

Cable structure:
Conductor: Annealed copper conductor, solid/strand
Insulation: PVC 75°C insulation
Color: black, other optional
Standards and certifications:
UL83-thermoset material insulated cable
CSA C22.2 NO.75-03
UL 1063 (MTW)-Machine wire and cable (multiple strands)
UL 758 (AWM)
ICEA S-95-658/NEMA WC 70
Specifications:
|
Conductor Type
|
Conductor
|
Insulation
|
Ref.W
|
|
AWG
|
Inch
|
mm
|
OD Inch
|
OD mm
|
Kg/km
|
|
Stranded Conductor
|
14
|
0.03
|
0.76
|
0.138
|
2.7
|
28
|
|
12
|
0.03
|
0.76
|
0.154
|
3.15
|
40
|
|
10
|
0.03
|
0.76
|
0.177
|
4.06
|
60
|
|
8
|
0.45
|
1.14
|
0.24
|
5.31
|
100
|
|
Solid Conductor
|
14
|
0.03
|
0.76
|
0.146
|
2.7
|
29
|
|
12
|
0.03
|
0.76
|
0.165
|
3.15
|
43
|
|
10
|
0.03
|
0.76
|
0.193
|
4.06
|
65
|
|
8
|
0.45
|
1.14
|
0.26
|
5.31
|
107
|
