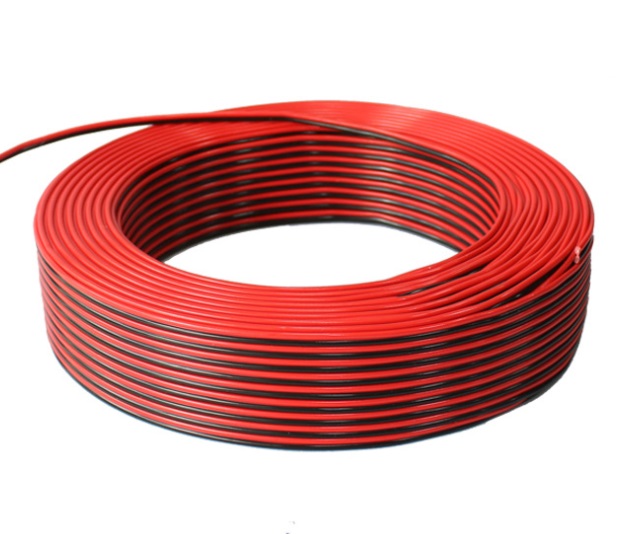

Speaker Wire Red/Black

Speaker Wire Red/Black

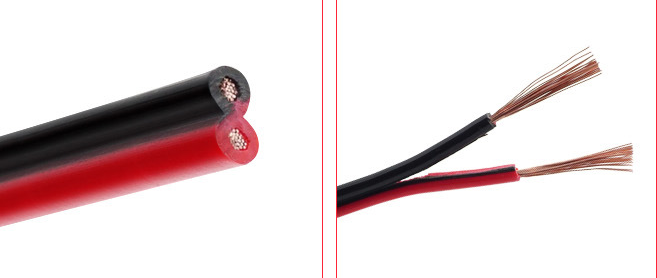

High performance speaker wire  Copper or Tinned Copper Conductor.


Specification AWG Conductor导体 Insulation导体
Nominal Area 标准截面 Strands/Single Dia 跟数/线径 Nominal Thickness    标准厚度 Nominal Dia   标准直径
mm2 mm mm mm
28 0.08 2*7/0.12 0.6 1.6*3.2
26 0.14 2*7/0.16 0.6 1.7*3.4
24 0.22 2*11/0.16 0.6 1.8*3.6
22 0.34 2*17/0.16 0.6 2*4
20 0.52 2*26/0.16 0.6 2.2*4.4
18 0.83 2*17/0.25 0.6 2.4*4.8
16 1.28 2*26/0.25 0.6 2.7*5.2
14 2 2*41/0.25 0.6 3.1*6.2
12 3.2 2*65/0.25 0.6 3.6*7.2

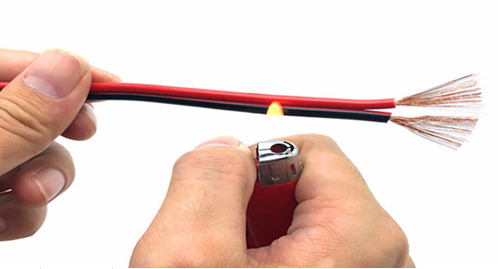

Flame Retartant
