Product Description：

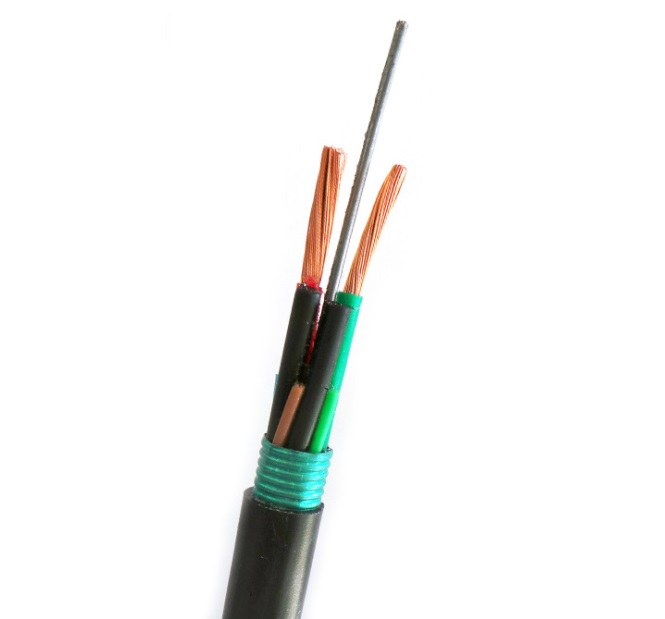

Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.

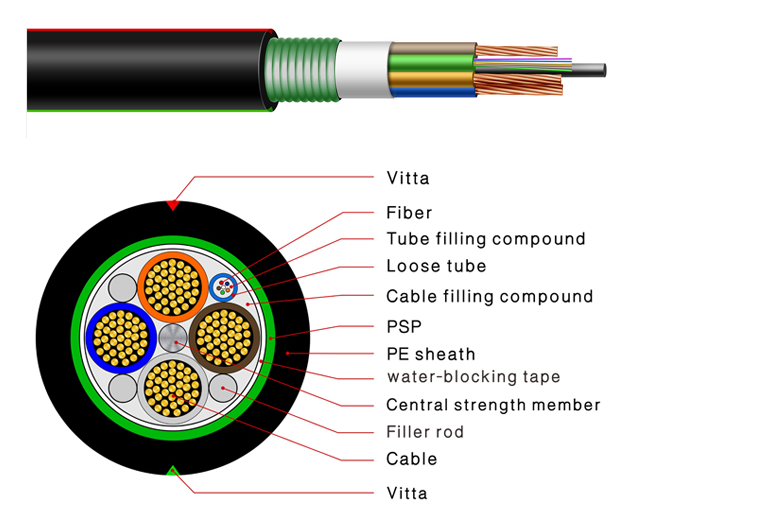

GDTS(Loose tube stranding,Metal strength member,Flooding jelly compound,steel-polyethylene adhesive sheath)
Specifications:
|
Fiber Count
|
Conductor Specs
|
Structure
|
Dia(mm)
|
Weight(kg/km)
|
Tensile Long/Short Term
|
Crush(N)
Long/
Short Term
|
Bending Radius(mm)
|
|
24
|
2*1.0
|
1+6
|
12.4
|
182
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*1.5
|
1+6
|
14.0
|
227
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*2.5
|
1+4
|
13.8
|
269
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*4.0
|
1+4
|
14.9
|
331
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*6.0
|
1+4
|
16.3
|
414
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*10.0
|
1+4
|
19.6
|
619
|
600/1500
|
300/1000
|
10D/20D
|
|
24
|
2*16.0
|
1+4
|
22.2
|
844
|
600/1500
|
300/1000
|
10D/20D
|
Feature:
1.Low dispersion and attenuation.
2.LAP Aluminum belt is applied around the cable core, which is filled with the filling compound to protect it from water-ingress.
3.Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.
4.The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
5.Compact structure and lightness, flexible and good bend-resistant performance.
Applicaiton:
1 Used for outdoor distribution box to the building's pipeline;overhead; buried.
2 Used in optical communication equipment room, light distribution frame light connection and optical
3 instruments, equipment connect to the light.
4 Used for tail fiber and jump in line.
5 Used for buildings surrounding into cable.
Standards:
Comply with Standard YD/T 901 as well as IEC 60794-1.
Tempeature: Operating /Storage:-40°c +70°c
