Rubber Sheath Cable |
|

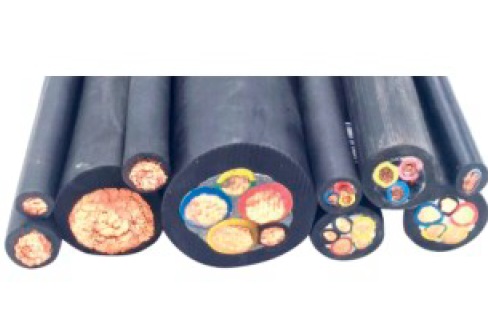

RUBBER SHEATH CABLE
|
Standard:
|
IEC245-53;IEC245-66
|
|
Cross section:
|
2*0.75mm2-5*95mm2
|
|
Application:
|
Suitable for outdoor and wet conditions
|
|
Conductor:
|
Flexible annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
Rubber
|
|
Voltage:
|
450/750V
|
Specificaitons:
|
Nominal
Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Approx Diameter mm
|
|
2*0.75
|
24/0.20
|
0.60
|
7.5
|
|
2*1.0
|
32/0.20
|
0.60
|
7.8
|
|
2*1.5
|
30/0.25
|
0.80
|
9.2
|
|
2*2.5
|
49/0.25
|
0.90
|
11.00
|
|
2*4.0
|
56/0.28
|
1.00
|
12.5
|
|
2*6.0
|
84/0.28
|
1.00
|
14.2
|
|
3*0.75
|
24/0.20
|
0.6
|
7.8
|
|
3*1.0
|
32/0.20
|
0.6
|
8.00
|
|
3*1.5
|
30/0.25
|
0.80
|
9.20
|
|
3*2.5
|
49/0.25
|
0.90
|
11.50
|
|
3*4.0
|
56/0.30
|
1.00
|
13.30
|
|
3*6.0
|
84/0.30
|
1.00
|
15.00
|
|
4*0.75
|
24/0.20
|
0.60
|
8.20
|
|
4*1.0
|
32/0.20
|
0.60
|
9.20
|
|
4*1.5
|
30/0.25
|
0.80
|
11.00
|
|
4*2.5
|
49/0.25
|
0.90
|
12.50
|
|
4*4.0
|
56/0.30
|
1.00
|
14.80
|
|
4*6.0
|
84/0.30
|
1.00
|
16.50
|
|
|
|
|
|
