Overhead AAAC Cable
Overhead AAAC Cable

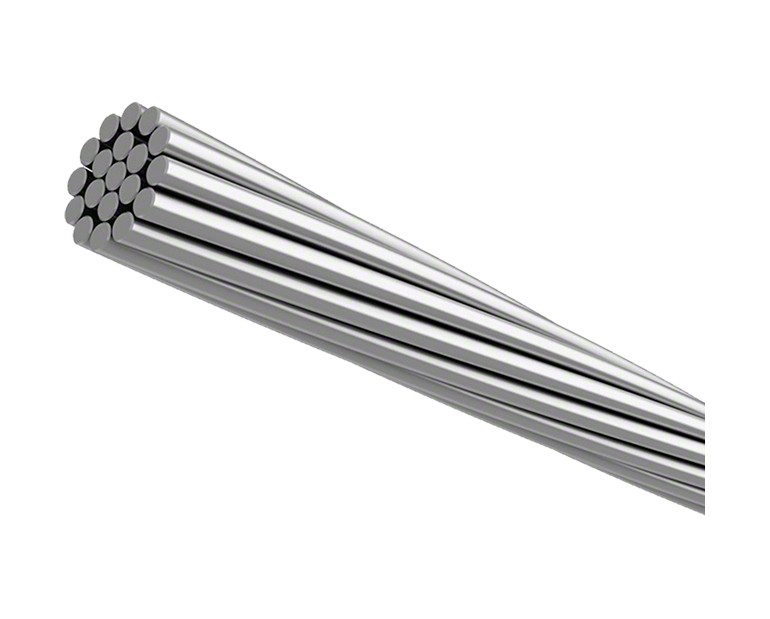

AAAC Overhead Powerline Cable
Standard:
ASTMB-399
Cross section:
15mm2 – 500mm2
Application:
Used on long spans or under very severe hard conditions
Conductor:
Stranded aluminum/alloy
Insulation:
No
Sheath/Jacket
No
Voltage:
600/1000V
Specificaitons:
Code Name
Nominal Cross Section mm2
No./Diameter of Conductor mm
Approx Diameter mm
Nominal Breaking Load
Max dc Resistance At 20oC Ω/km
Standard Length M±5%
Akron
15.51
7/1.68
5.04
492
2.1598
3100
Alton
24.71
7/2.12
6.36
784
1.3556
2500*2
Ames
39.19
7/2.67
8.02
1245
0.8548
3200
Azusa
62.44
7/3.37
10.11
198
0.5365
2300
Anaheim
78.55
7/3.78
11.35
2393
0.4265
2700
Amherst
99.3
7/4.25
12.75
3018
0.3373
2500
Alliance
125.1
7/4.77
14.31
3805
0.2678
2000
