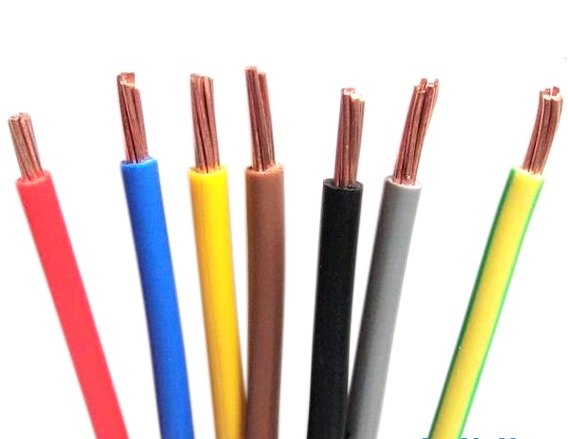

THW PVC sheath Cable |
|
Vehicle Cable
|
Standard:
|
UL 83
|
|
Cross section:
|
16AWG – 500MIL
|
|
Application:
|
Building wire for using in wet or dry locations
|
|
Conductor:
|
Solid / stranded annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
No.
|
|
Voltage:
|
600V
|
Specificaitons:
|
Item Spec.
|
AWG Size
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Max.Outer Diameter mm
|
Max Outer Diameter mm
|
|
THW-16B
|
16
|
7/0.49
|
0.76
|
2.8
|
19
|
|
THW-14B
|
14
|
7/0.62
|
0.76
|
3.4
|
29
|
|
THW-12B
|
12
|
7/0.78
|
0.76
|
3.9
|
42
|
|
THW-10B
|
10
|
7/0.98
|
0.76
|
4.5
|
62
|
|
THW-8B
|
8
|
7/1.23
|
1.14
|
6
|
103
|
|
THW-6B
|
6
|
7/1.56
|
1.52
|
7.8
|
169
|
|
THW-4B
|
4
|
7/1.96
|
1.52
|
9
|
249
|
|
THW-3B
|
3
|
7/2.20
|
1.52
|
9.7
|
306
|
|
THW-2B
|
2
|
7/2.47
|
1.52
|
10.5
|
376
|
|
THW-1B
|
1
|
19/1.68
|
2.03
|
12.5
|
487
|
|
THW-1/0B
|
1/0
|
19/1.89
|
2.03
|
13.6
|
600
|
|
THW-2/0B
|
2/0
|
19/2.12
|
2.03
|
14.7
|
739
|
|
THW-3/0B
|
3/0
|
19/2.38
|
2.03
|
16
|
912
|
|
THW-4/0B
|
4/0
|
19/2.67
|
2.03
|
17.5
|
1130
|
|
THW-16A
|
16
|
1/1.29
|
0.76
|
2.9
|
19
|
|
THW-14A
|
14
|
1/1.63
|
0.76
|
3.2
|
27
|
|
THW-12A
|
12
|
1/2.05
|
0.76
|
3.6
|
39
|
|
THW-10A
|
10
|
1/2.59
|
0.76
|
4.1
|
59
|
|
|
|
|
|
