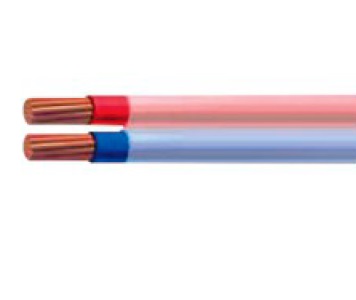

Figure 8 Battery Cable
Figure 8 Battery Cable
Figure 8 Battery Cable
Standard:
AS/NZS1125;AS/NZS3808
Cross section:
10mm - 25mm
Application:
Indoor and outdoors,motoried vehicles,fork lifts,field conveyor,in high quality booster cables,battery and starter
Conductor:
Flexible annealed copper
Insulation:
PVC/rubber
Sheath/Jacket
UV stabilized PVC
Voltage:
600/1000V
Specificaitons:
Nominal
Cross Section mm2
No./Diameter of Conductor mm
Insulation Thickness mm
Sheath Thickness mm
Max Outer Diameter mm
Ref.Weight kg/km
10
322/0.2
1.0
0.9
8.0*17.0
16.5
16
511/0.2
1.0
1.0
9.5*19.5
23
25
784/0.2
1.2
1.1
11.0*22.5
39
