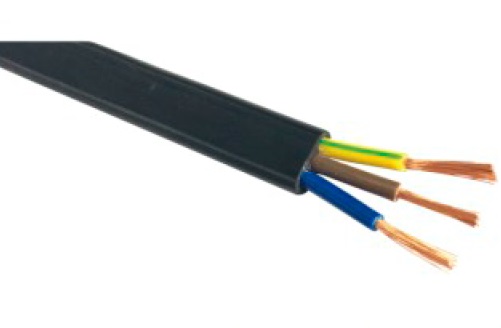

RVVB Flat Cable |
|
RVVB Flexible Cable
|
Standard:
|
BS6500;IEC60227;VDE0281
|
|
Cross section:
|
2*0.75mm2– 3*6mm2
|
|
Application:
|
Suitable for indoor or outdoor electric tools,washing machines
|
|
Conductor:
|
Flexible annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
PVC
|
|
Voltage:
|
300/500V
|
Specificaitons:
|
Item Spec.
|
Nominal Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Jacket Thickness mm
|
Max Outer Diameter mm
|
Ref.Weight kg/km
|
|
H05VVH2-F 2Cores
|
2*0.75
|
2*24/0.2
|
0.6
|
0.8
|
4.0*6.4
|
37
|
|
H05VVH2-F 2Cores
|
2*1
|
2*32/0.2
|
0.6
|
0.8
|
4.2*6.8
|
61.1
|
|
H05VVH2-F 2Cores
|
2*1.5
|
2*30/0.25
|
0.7
|
0.8
|
4.6*7.6
|
85
|
|
H05VVH2-F 2Cores
|
2*2.5
|
2*50/0.25
|
0.8
|
1
|
5.7*9.4
|
128
|
|
H05VVH2-F 2Cores
|
2*4
|
2*56/0.3
|
0.8
|
1.1
|
6.4*10.6
|
185
|
|
H05VVH2-F 3Cores
|
3*0.75
|
3*24/0.2
|
0.6
|
0.8
|
40*8.8
|
65
|
|
H05VVH2-F 3Cores
|
3*1
|
3*32/0.2
|
0.6
|
0.8
|
4.2*9.1
|
77
|
|
H05VVH2-F 3Cores
|
3*1.5
|
3*30/0.25
|
0.7
|
0.8
|
4.7*10.5
|
104
|
|
H05VVH2-F 3Cores
|
3*2.5
|
3*49/0.25
|
0.8
|
1
|
5.9*13.3
|
159
|
|
H05VVH2-F 3Cores
|
3*4
|
3*56/0.30
|
0.8
|
1.1
|
6.6*15.6
|
228
|
|
|
|
|
|
