RV Flexible Cable |
|

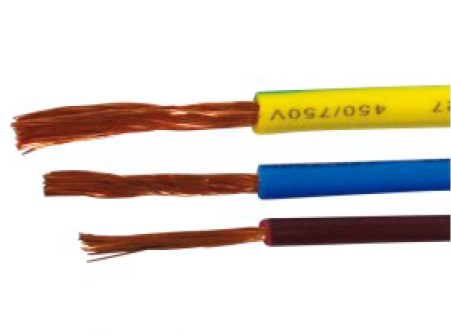

RV flexible wire
|
Standard:
|
BS6004;IEC60227
|
|
Cross section:
|
0.5mm2-240mm2
|
|
Application:
|
Building wire for placing into trucking and conduit
|
|
Conductor:
|
Flexible annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
No.
|
|
Voltage:
|
450/750V
|
Specificaitons:
|
Item Spec.
|
Nominal
Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Max.Outer Diameter mm
|
Ref.Weight kg/km
|
|
H05V-K
|
0.5
|
16/0.2
|
0.6
|
2.6
|
8
|
|
H05V-K
|
0.75
|
24/0.2
|
0.6
|
2.8
|
11
|
|
H05V-K
|
1
|
32/0.2
|
0.6
|
3
|
13
|
|
H05V-K
|
1.5
|
30/0.25
|
0.7
|
3.5
|
19
|
|
H07V-K
|
2.5
|
50/0.25
|
0.8
|
4.2
|
30
|
|
H07V-K
|
4
|
56/0.3
|
0.8
|
4.8
|
46
|
|
H07V-K
|
6
|
84/0.3
|
0.8
|
6.3
|
67
|
|
H07V-R
|
10
|
80/0.4
|
1
|
7.6
|
121
|
|
H07V-U
|
16
|
128/0.4
|
1
|
8.8
|
173
|
|
H07V-R
|
25
|
200/0.4
|
1.2
|
11
|
268
|
|
H07V-U
|
35
|
280/0.4
|
1.2
|
12.5
|
370
|
|
H07V-R
|
50
|
400/0.4
|
1.4
|
14.5
|
526
|
|
H07V-R
|
70
|
356/0.5
|
1.4
|
17
|
727
|
|
H07V-R
|
95
|
485/0.5
|
1.6
|
19
|
959
|
|
H07V-R
|
120
|
614/0.5
|
1.6
|
21
|
1201
|
|
H07V-R
|
150
|
765/0.5
|
1.8
|
23.5
|
1508
|
|
|
|
|
|
