BVVB Flat Cable |
|

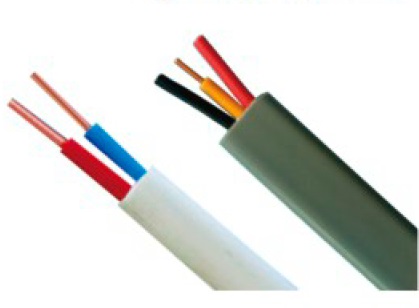

BVVB Flat Cable
|
Standard:
|
BS6004;IEC60227
|
|
Cross section:
|
2*0.75mm2– 3*6mm2
|
|
Application:
|
Suitable for indoor or outdoor surface wiring
|
|
Conductor:
|
Solid/stranded annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
PVC
|
|
Voltage:
|
300/500V
|
Specificaitons:
|
Item Spec.
|
Nominal Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Jacket Thickness mm
|
Max Outer Diameter mm
|
Ref.Weight kg/km
|
|
2Cores
|
2*0.75
|
2*1/0.97
|
0.6
|
0.9
|
4.6*7.1
|
44.59
|
|
2Cores
|
2*1.0
|
2*1/1.13
|
0.6
|
0.9
|
4.8*7.4
|
51.7
|
|
2Cores
|
2*1.5
|
2*1/1.38
|
0.7
|
0.9
|
5.3*8.5
|
68.65
|
|
2Cores
|
2*2.5
|
2*1/1.78
|
0.8
|
1
|
6.2*10.1
|
101.71
|
|
2Cores
|
2*4
|
2*1/2.25
|
0.8
|
1
|
6.7*11.1
|
137.25
|
|
2Cores
|
2*4
|
2*1/0.85
|
0.8
|
1
|
6.9*11.5
|
147.05
|
|
2Cores
|
2*6
|
2*1/2.76
|
0.8
|
1.1
|
7.5*12.5
|
188.14
|
|
2Cores
|
2*6
|
2*7/1.04
|
0.8
|
1.1
|
7.8*13
|
200.63
|
|
2Cores
|
2*10
|
2*7/1.35
|
1
|
1.2
|
9.5*16.2
|
320.21
|
|
3Cores
|
3*0.75
|
3*1/0.97
|
0.6
|
0.9
|
4.6*9.6
|
63.46
|
|
3Cores
|
3*1.0
|
3*1/1.13
|
0.6
|
0.9
|
4.8*10.1
|
74.16
|
|
3Cores
|
3*1.5
|
3*1/1.38
|
0.7
|
0.9
|
5.3*11.7
|
99.52
|
|
3Cores
|
3*2.5
|
3*1/1.78
|
0.8
|
1
|
6.2*14.0
|
148.36
|
|
3Cores
|
3*4
|
3*1/2.25
|
0.8
|
1
|
7.0*15.8
|
207.56
|
|
3Cores
|
3*4
|
3*7/0.85
|
0.8
|
1
|
7.1*16.3
|
222.56
|
|
3Cores
|
3*6
|
3*1/2.76
|
0.8
|
1.1
|
7.5*17.5
|
277.18
|
|
3Cores
|
3*6
|
3*7/1.04
|
0.8
|
1.1
|
7.8*18.2
|
296.52
|
|
|
|
|
|
