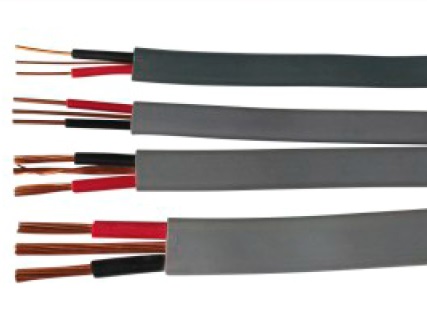

BVVB with Grounding Wire |
|
BVVB + Grounding Wire
|
Standard:
|
BS6004;IEC60227
|
|
Cross section:
|
2*1mm2 + grounding wire+ 2*16mm2 + grouding wire
|
|
Application:
|
Suitable for indoor or outdoor surface wiring
|
|
Conductor:
|
Solid/stranded annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
PVC
|
|
Voltage:
|
300/500V
|
Specificaitons:
|
Item Spec.
|
Nominal Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Jacket Thickness mm
|
Max Outer Diameter mm
|
Ref.Weight kg/km
|
|
2*1.0+G
|
2*1/1.13
|
2*1/0.97
|
0.6
|
0.9
|
4.5*8.2
|
64.16
|
|
2*1.5+G
|
2*1/1.38
|
2*1/1.13
|
0.7
|
0.9
|
5.1*9.2
|
89.52
|
|
2*1.5+G
|
2*7/0.52
|
2*1/1.38
|
0.7
|
0.9
|
5.3*9.4
|
91.52
|
|
2*2.5+G
|
2*1/1.78
|
2*1/1.78
|
0.8
|
1
|
5.4*10.1
|
128.36
|
|
2*2.5+G
|
2*7/0.68
|
2*1/2.25
|
0.8
|
1
|
5.6*10.3
|
130.36
|
|
2*4+E
|
2*1/2.25
|
2*1/0.85
|
0.8
|
1
|
5.9*11.8
|
180.56
|
|
2*4+E
|
2*7/0.85
|
2*1/2.76
|
0.8
|
1
|
6.1*12.1
|
202*66
|
|
2*6+E
|
2*1/2.76
|
2*7/1.04
|
0.8
|
1.1
|
6.7*12.8
|
247.18
|
|
2*6+E
|
2*7/1.04
|
2*7/1.35
|
0.8
|
1.1
|
6.9*13.3
|
267.18
|
|
2*10+E
|
2*7/1.35
|
3*1/0.97
|
1
|
1.2
|
7.8*14.5
|
435.05
|
|
2*16+E
|
2*7/1.7
|
3*1/1.13
|
1
|
1.2
|
9.5*20
|
567.01
|
|
|
|
|
|
