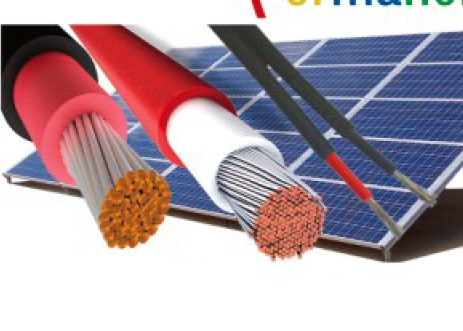

Solar Cable PV1-F |
|
RUBBER SHEATH CABLE
|
Standard:
|
UNE211 23；UNE20.460-5-52,UTE C 32-502;IEC60811-2-1;IEC60322-1
|
|
Cross section:
|
1.5mm2-2*16mm2
|
|
Application:
|
Suitable for PV solar DC current systems
|
|
Conductor:
|
stranded annealed copper/tinned copper
|
|
Insulation:
|
XLPE
|
|
Sheath/Jacket
|
XLPE
|
|
Voltage:
|
600/1000V
|
Specificaitons:
|
Nominal
Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Sheath Thickness mm
|
Max.Outer Diameter mm
|
|
1.5
|
30/0.25
|
0.6
|
0.6
|
4.7
|
|
2.5
|
51/0.25
|
0.6
|
0.7
|
5.2
|
|
4
|
56/0.3
|
0.6
|
0.7
|
6.1
|
|
6
|
84/0.3
|
0.8
|
0.8
|
7.2
|
|
10
|
142/0.3
|
0.9
|
0.9
|
9
|
|
2*1.5
|
2*30/0.25
|
0.6
|
0.6
|
9.4*4.7
|
|
2*2.5
|
2*51/0.25
|
0.6
|
0.7
|
10.4*5.2
|
|
2*4
|
2*56/0.3
|
0.6
|
0.7
|
12.2*6.1
|
|
2*6
|
2*84/0.3
|
0.8
|
0.8
|
14.4*7.2
|
|
2*10
|
2*142/0.3
|
0.9
|
0.9
|
18*9
|
|
|
|
|
|
