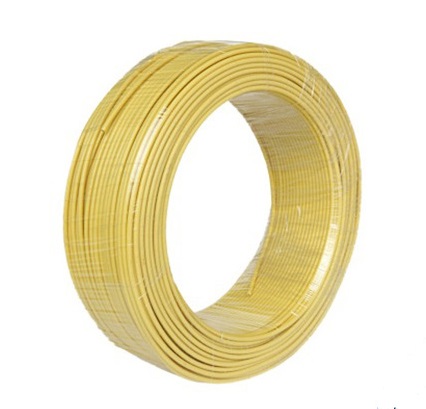

THHN Nylon Sheath Cable |
|
Vehicle Cable
|
Standard:
|
UL 83 & UL1581
|
|
Cross section:
|
20AWG – 500MIL
|
|
Application:
|
Building wire for placing into trucking and conduit
|
|
Conductor:
|
Solid / stranded annealed copper
|
|
Insulation:
|
PVC
|
|
Sheath/Jacket
|
Nylon
|
|
Voltage:
|
600V
|
Specificaitons:
|
Item Spec. AWG
|
Nominal Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Jacket Thickness mm
|
Max Outer Diameter mm
|
Ref.Weight kg/km
|
|
20
|
0.519
|
1/0.813
|
0.38
|
0.1
|
1.77
|
1.07
|
|
18
|
0.823
|
1/1.02
|
0.38
|
0.1
|
1.98
|
10.94
|
|
16
|
1.31
|
1/1.29
|
0.38
|
0.1
|
2.25
|
16.48
|
|
14
|
2.08
|
1/1.63
|
0.38
|
0.1
|
2.59
|
23.17
|
|
16
|
1.31
|
19/0.3
|
0.38
|
0.1
|
2.46
|
17.95
|
|
14
|
2.08
|
19/0.38
|
0.38
|
0.1
|
2.86
|
23.8
|
|
12
|
3.31
|
19/0.47
|
0.38
|
0.1
|
2.31
|
35.7
|
|
10
|
5.26
|
19/0.60
|
0.51
|
0.1
|
4.22
|
56.2
|
|
8
|
8.37
|
7/1.23
|
0.76
|
0.13
|
5.47
|
93.7
|
|
6
|
13.3
|
7/1.55
|
0.76
|
0.13
|
6.43
|
141.3
|
|
4
|
21.15
|
7/1.96
|
1.02
|
0.15
|
8.22
|
227.6
|
|
2
|
33.62
|
7/2.47
|
1.02
|
0.15
|
9.75
|
348.1
|
|
1
|
42.36
|
7/2.78
|
1.27
|
0.18
|
11.24
|
446.2
|
|
1/0
|
53.49
|
19/1.89
|
1.27
|
0.18
|
12.35
|
553
|
|
2/0
|
67.43
|
19/2.12
|
1.27
|
0.18
|
13.5
|
688.7
|
|
3/0
|
85.01
|
19/2.39
|
1.27
|
0.18
|
14.85
|
856.8
|
|
4/0
|
107.2
|
19/2.68
|
1.27
|
0.18
|
16.3
|
1069.5
|
|
|
|
|
|
