Product application:

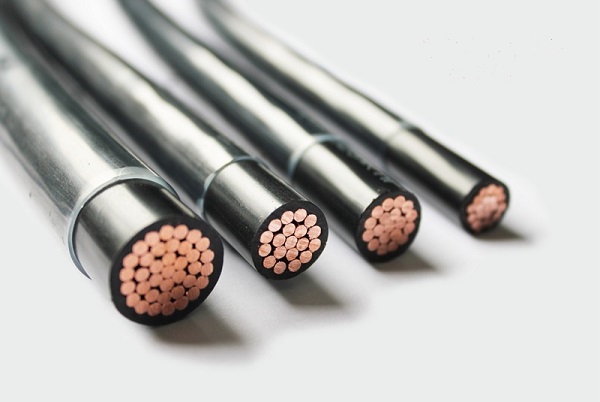

THHN/THWN type conductor, according to the National Electrical Code, installation through the catheter, are suitable for service in commercial/industrial systems. Branch circuit wiring THHN cable is suitable for use in dry environment where the temperature does not exceed 90°C.
THWN cable is suitable for use in dry environment where temperature do not exceed 90°C, humid environment at 75°C, or oil/coolant that do not exceed 75°C.
THWN-2 cable is suitable for use in oil/coolant that does not exceed 75°C in a dry or humid environment where the temperature does not exceed 90°C.
MTW cable is suitable for use in humid environment where the temperature does not exceed 60°C in oil/coolant, and in dry environment where the temperature does not exceed 90°C (only for 75°C conductor ampacity as specified in NFPA 79).
For equipment in a dry environment where the conductor temperature does not exceed 105°C, AWM type cable can be used as equipment wire, rated voltage is 600V.
Standards and certifications:
UL83-thermoset material insulated cable
CSA C22.2 NO.75-03
UL 1063 (MTW)-Machine wire and cable (multiple strands)
UL 758 (AWM)
ICEA S-95-658/NEMA WC 70
Specifications:
|
Conductor Type
|
Conductor
|
Insulation
|
Jacket
|
Max Dia mm
|
Ref.W
KG/KW
|
|
AWG
|
No./mm2
|
OD mm
|
Thickness mm
|
OD mm
|
Thickness mm
|
OD mm
|
|
Stranded Conductor
|
14
|
19/0.38
|
1.9
|
0.38
|
2.7
|
0.1
|
2.04
|
3.4
|
25
|
|
12
|
19/0.47
|
2.35
|
0.38
|
3.15
|
0.1
|
3.39
|
3.8
|
38
|
|
10
|
19/0.60
|
3
|
0.51
|
4.06
|
0.1
|
4.3
|
4.8
|
59
|
|
8
|
19/0.75
|
3.75
|
0.76
|
5.31
|
0.13
|
5.61
|
6.3
|
96
|
|
6
|
19/0.95
|
4.77
|
0.76
|
6.33
|
0.13
|
6.63
|
7.4
|
146
|
|
4
|
19/1.19
|
5.95
|
0.76
|
7.51
|
0.13
|
7.81
|
8.7
|
135
|
|
3
|
19/1.33
|
6.65
|
1.02
|
8.73
|
0.15
|
9.07
|
10
|
291
|
|
2
|
19/1.50
|
7.5
|
1.02
|
9.58
|
0.15
|
9.92
|
11
|
361
|
|
1
|
19/1.68
|
8.4
|
1.02
|
10.48
|
0.18
|
10.88
|
12.1
|
459
|
|
1/0
|
19/1.89
|
9.45
|
1.27
|
12.03
|
0.18
|
12.43
|
13.8
|
585
|
|
2/0
|
19/2.12
|
10.8
|
1.27
|
13.16
|
0.18
|
13.58
|
15.1
|
724
|
|
3/0
|
19/2.38
|
11.9
|
1.27
|
14.48
|
0.18
|
14.88
|
16.5
|
900
|
|
4/0
|
19/2.67
|
13.35
|
1.27
|
15.93
|
0.18
|
16.33
|
18.1
|
1118
|
