TPS Cable |
|

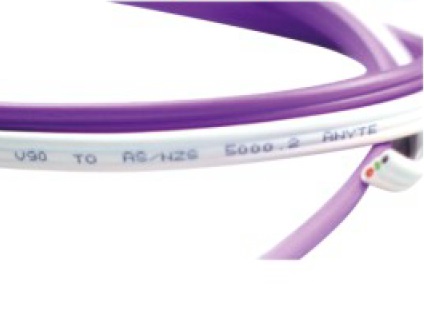

TPS Cable
|
Standard:
|
AS/NZS 5000.2
|
|
Cross section:
|
2*1.0mm2 - 3*16mm2 +Grouding Wire
|
|
Application:
|
For welding machine or power machine
|
|
Conductor:
|
Stranded annealed copper
|
|
Insulation:
|
V-90 PVC
|
|
Sheath/Jacket
|
V-90 PVC
|
|
Voltage:
|
450/750V
|
Specificaitons:
|
Nominal
Cross Section mm2
|
No./Diameter of Conductor mm
|
Insulation Thickness mm
|
Sheath Thickness mm
|
Approx Diameter mm
|
Ref.Weight kg/km
|
|
2*1.0+E
|
1/1.13+7/0.5
|
0.6
|
0.9
|
9.3*4.6
|
80
|
|
2*1.5+E
|
7/0.5+7/0.5
|
0.6
|
0.9
|
10.1*4.6
|
91
|
|
2*2.5+E
|
1/1.78+7/0.67
|
0.7
|
1
|
11.9*5.5
|
140
|
|
2*2.5+E
|
7/0.67+7/0.67
|
0.7
|
1
|
12.4*5.5
|
144
|
|
2*4.0+E
|
7/0.85+7/0.67
|
0.8/0.7
|
1.1
|
14*6.4
|
190
|
|
2*6.0+E
|
7/1.04+7/0.67
|
0.8/0.7
|
1.1
|
15.2*7.0
|
237
|
|
2*10.0+E
|
7/1.35+7/0.85
|
1.0/0.8
|
1.2
|
18.9*8.7
|
368
|
|
2*16.0+E
|
7/1.7+7/1.04
|
1.0/0.8
|
1.3
|
21.8*10.0
|
534
|
|
|
|
|
|
